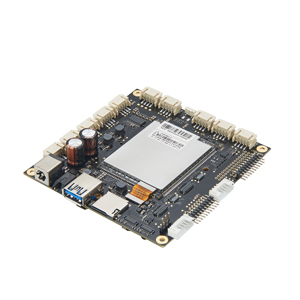

Embsom Launches MSM8953 Development Board for Industrial and IoT Applications

Embsom has announced the release of its latest product, the MSM8953 Development Board, designed to meet the growing demands of industrial control and IoT applications. Leveraging the power of the Qualcomm Snapdragon 450 (MSM8953) platform, this development board offers a robust and versatile solution for developers and engineers.

Key Features and Specifications

• Processor: Qualcomm MSM8953 (Snapdragon 450), 8-core ARM Cortex-A53, up to 2.2GHz

• Memory: Options ranging from 1GB to 4GB DDR3

• Storage: eMMC options from 8GB to 64GB; supports TF cards up to 128GB

• Operating System: Android 10

• Connectivity: Dual-band Wi-Fi (802.11 b/g/n/ac), Bluetooth 4.x, GPS, and full network communication bands including GSM, WCDMA, TD-SCDMA, CDMA1X/EVDO, FDD-LTE, and TD-LTE

• Display Interfaces: Supports eDP, LVDS, and MIPI displays with resolutions up to FHD+ (2160 x 1080)

• Graphics: Adreno 506 GPU, up to 650 MHz

• Expansion: USB 3.0 Type-A, multiple USB 2.0 interfaces, RS232/RS485 serial ports, Ethernet, and camera interfaces

• Dimensions: system on mdoule size 42mm x 54mm x 2.8mm. Carrier board size 98mm x 94mm

Applications

The MSM8953 Development Board is ideal for a wide range of applications, including:

• Handheld terminal equipment

• Intelligent security systems

• Mobile law enforcement terminals

• Industrial tablet

• Vehicle-mounted devices

• Mobile data acquisition terminals

Availability

The MSM8953 Development Board is now available for order. For more information and to request a quote, please visit the official product page: https://www.embsom.com/Qualcomm-MSM8953-Development-Board/.
