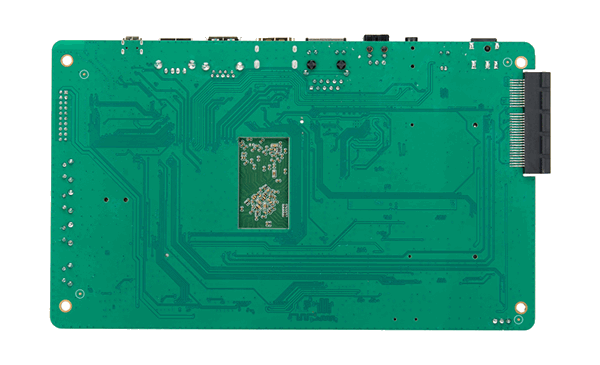

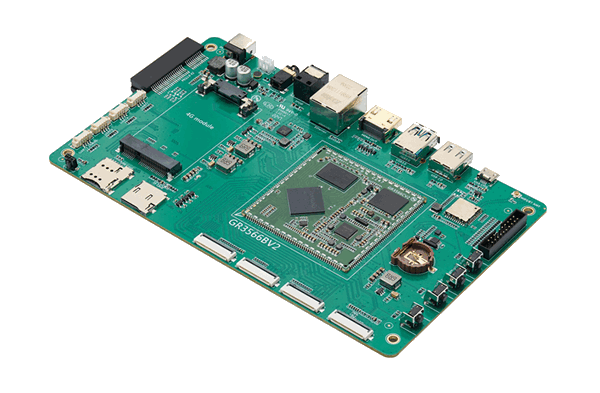

Rockchip RK3566 Development Board

CPU RK3566 ARM Cortex-A55
Frequency 1.8GHz*4
RAM 2GB DDR3/4GB DDR3 optional
EMMC 8GB/16GB/32GB eMMC optional
Consult Now
  • Overview
  • Hardware
  • Software
  • Download
  • FAQ

RK3566 development board base on Rockchip RK3566 chip. It consist of RK3566 systemon module and carrier board. Its CPU is quad-core, integrated dual core GPU andNPU, max 8GB RAM, inbuilt PCIE2.1 interface. The board support Wifi, 4G module,gigabit Ethernet, 4K HDMI display, and kinds of extensiable interfaces.It could beused in industrial control, MEC, and face recognition and so on

Structural
 parameters

1、 Appearance: RK3566 system on module + carrier board

2、 Size: 185.4 mm x 110.7 mm

3、Layer: RK3566 system on module in 8-layers, and carrier board 4-layer

System
 Configuration

CPU: Rockchip RK3566

Frenquency: Quad-core 64bits Cortex-A55 CPU, 22nm, 1.8GHz

GPU: ARM G52 2EE GPU, OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1,inbuilt 2D hardware acceleration

NPU: Integrated RKNN NPU A1 accelerator, 1Top NPU,such as: Caffe/TensorFlow/TF-Lite/ONNX/MXNet/PyTorch/Keras/Darknet

CODEC: 4K 60fps H.265/H.264/VP9 vedio decode, and 1080P 100fps H.265，60fps H.264 video encode

RAM: 2GB/4GB/8GB lpddr4/4x, 2GB as standard version

EMMC: 8GB/16GB/32GB/64GB/128GB eMMC optional, 16GB as standard version

Support PCIe2.1 和 SATA3.0, and SSD/HDD as extensiable

Aslo UART、I2C、ADC、PWM、GPIO、USB2.0、USB3.0、HDMI、EDP、MIPI CSI、MIPI DSI、I2S extensiable port

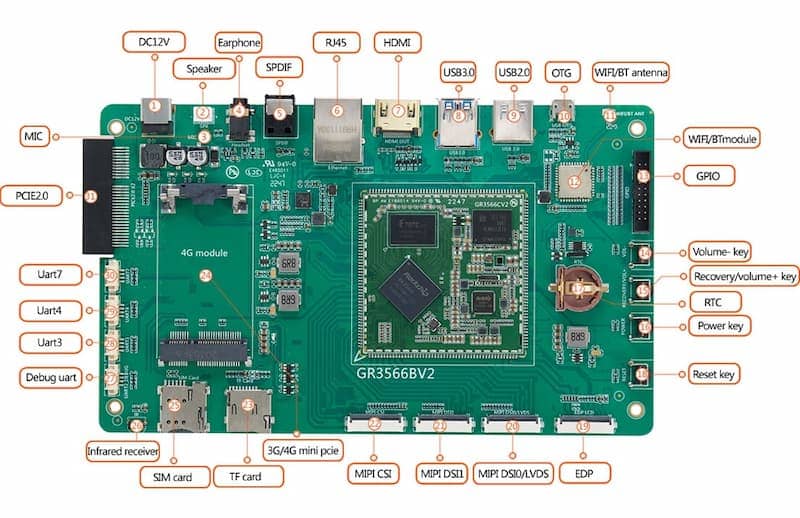

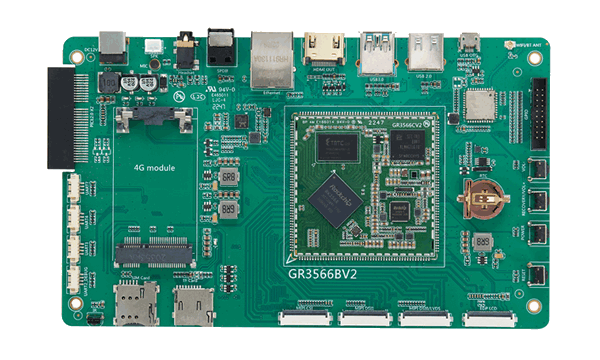

Interface
 Parameters


1. DC 12V power supply

2. Speaker interface

3. Audio output

4. Headphone audio output

5. SPDIF audio output

6. RJ 45 gigabit Ethernet

7. HDMI TYPE-A intput

8. USB3.0 HOST

9. USB2.0 HOST

10. USB2.0 OTG

11. WIFI-BT antenna

12. WIFI-BT module

13. GPIO

14. VOL- key

15. Upgrade/Vol+

16. Power on key

17. RTC battery slot

18. Reset key

19. EDP display interface

20. MIPI DSI0/LVDS display interface

21. MIPI DSI1 display interface

22. MIPI camera

23. TF card slot

24. 4G module slot

25. SIM card slot

26. IR connector

27. Debug serial port

28. UART3

29. UART4

30. UART7

31. PCIE2.0S extensiable port

Electrical
 Characteristics

Working temperature: -20℃- 80℃

Stroge temperature:-30℃- 80℃

Stroge humidity: 10%～80 %

Other

OS: Android12, Linux, Ubuntu, Debian OS

Cutomize service: RK3566 system on module + carrier board customize + software developing + OEM/ODM

Application

HD display advertising machines, vending machines, teaching terminals, automatic identification, robots, security monitoring, financial POS, vehicle control terminals and so on

Product name

Type

Size（KB）

Download the latest version

Rockchip RK3566 Development Board

File does not exist!

File does not exist!

Rockchip RK3566 Development Board



QCan the RK3566 SOM be customized for specific project needs?

A Yes, we offer hardware customization based on the RK3566 SOM, including carrier board design, I/O adjustments, display tuning, and BSP modification to fit your exact application scenario.

QIs there documentation and SDK support for the RK3566 SOM?

A Yes, Embsom provides full documentation including schematics, datasheets, user guides, and SDK packages for both Android and Linux, ensuring smooth development and integration with the RK3566 SOM.

QWhat storage methods are supported on the RK3566 SOM?

A The RK3566 SOM supports eMMC, and SD card boot. Optional interfaces like SATA and NVMe SSDs via PCIe make it flexible for different storage demands.

QWhat are the display options available for RK3566 SOM?

A The RK3566 SOM supports multiple display technologies including HDMI 2.0 (up to 4K), MIPI-DSI, LVDS, and eDP, ensuring compatibility with modern display panels in diverse embedded projects.

QWhat is the typical use case for the RK3566 SOM?

A The RK3566 SOM is well-suited for embedded solutions such as edge computing gateways, industrial HMI panels, AI-enabled surveillance devices, and IoT control units that require high reliability and compact size.

QWhat types of interfaces does the RK3566 SOM offer?

A The RK3566 SOM provides a broad range of I/O interfaces including Gigabit Ethernet, PCIe, USB 3.0, MIPI-DSI/CSI, LVDS, I2C, UART, and GPIO, offering excellent expandability for embedded designs.

QDoes the RK3566 SOM include AI processing capabilities?

A Yes, the RK3566 SOM integrates a 1 TOPS NPU, enabling it to efficiently perform edge AI tasks like object classification, people detection, and facial recognition—ideal for smart vision and AIoT systems.

QWhich operating systems are supported by the RK3566 SOM?

A The RK3566 System on Module supports multiple operating systems including Android 12, Debian/Ubuntu Linux, and Buildroot. We provide complete BSPs and documentation to help accelerate custom application development on this platform.

QCan the RK3566 SBC be customized for specific applications?

A Yes, we offer customization for the RK3566 SBC including board layout adjustments, peripheral configuration, OS optimization, and enclosure design to meet specific project needs.

QWhat documentation and SDK resources are available for RK3566 SBC?

A RK3566 SBC is supported by full documentation including datasheets, user manuals, schematics, and SDK packages with source code for Android/Linux development.
