| CPU | MSM8953 ARM Cortex-A53 |
|---|---|
| Frequency | 2.0GHz*8 |
| RAM | 1GB DDR3/2GB DDR3 optional |
| EMMC | 8GB/16GB/32GB eMMC optional |

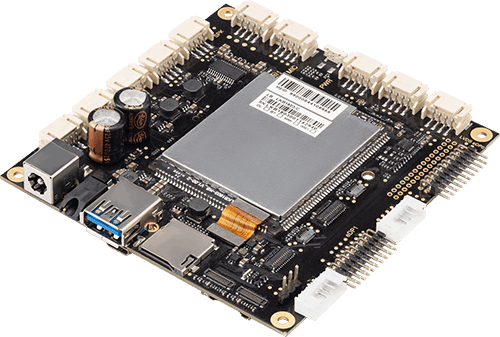

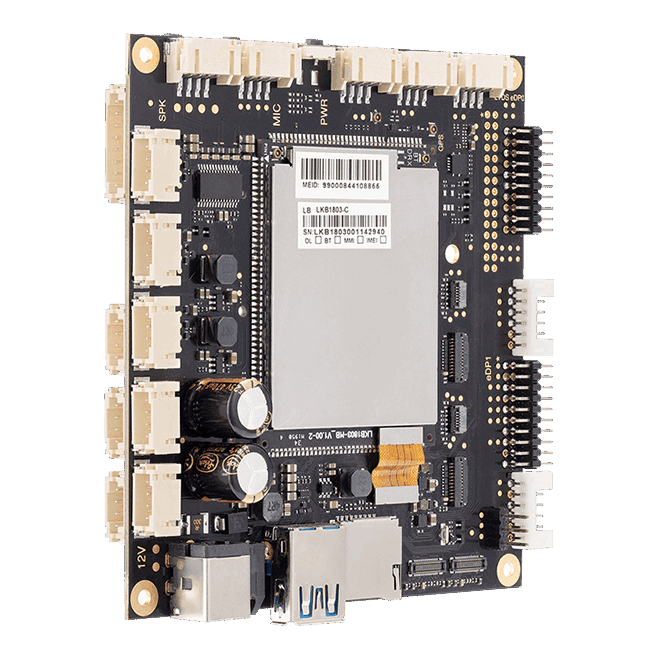

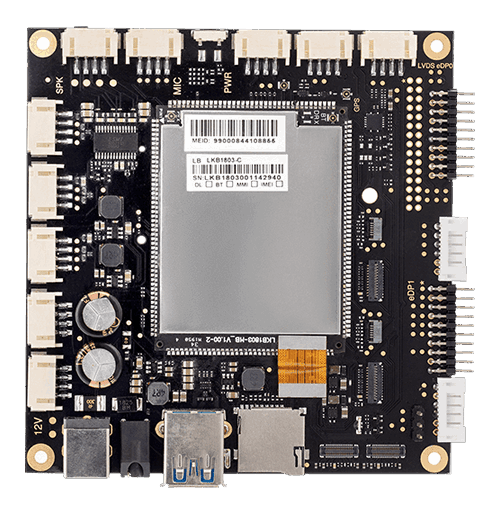

MSM8953 industrial control motherboard is a master industrial control motherboard based on Qualcomm MSM8953 (SDM450) platform. It is equipped with Android 10 operating system, full network communication frequency band, Bluetooth, wifi, GPS and other functions, and can be externally connected to eDP, LVDS, MIPI displays, and supports 1-way USB3.0 standard Type A interface
Structural | 1、Appearance: stamp hole 2、Core plate size: 42mm * 54mm * 2.8mm [industry-leading] 3、Process: 8-layer gilding process design, PCB made by Taiwan funded large factory [exclusive support] |
|---|---|
System | CPU: MSM8953 (Qualcomm Snapdragon 625 series), click to view the chip comparison parameters>>>8-core Cortex-A53, with the main frequency of 2.2GHz, which is considered as a high-end ARM processor in recent years Memory: 1GB DDR3 standard configuration, 2GB/3GB/4GB customizable [1GB standard configuration, 2GB/3GB/4GB customizable] Storage: 8GB/16GB/32GB/64GB emmc optional, 8GB standard configuration [8GB standard configuration, 16GB/32GB/64GB customizable] |
| Technical Specifications | Appearance type of industrial control motherboard: PCBA Appearance dimension of industrial control motherboard: 98 * 94mm A central processor: Standard edition: Qualcomm's ® SDM450:ARM ® Cortex ™- A53 application processor, up to 1.8GHz 64 bit 8-core High frequency version: By replacing the core board, it can support up to MSM8953, 2.2GHz 64 bit 8-core Storage capacity: Standard version: 2GB LPDDR3, up to 933MHz 16GB eMMC High configuration version: 3GB LPDDR3+32GB eMMC supports up to 4GB LPDDR3+64GB eMMC External storage: TF card, up to 128GB RF working frequency band: GSM 900/1800/1900/850 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 CDMA 1X/EVDO：BC0 FDD-LTE：B1/B3/B5/B7 TD-LTE：B38/B39/B40/B41N WLAN: 802.11 b/g/n/ac 2.4G/5G dual band External storage: TF card, up to 128GB Bluetooth：BT 4.x GPS,BD,GNSS：GPS BEIDOU—BD2 Glonass Display interface: The maximum resolution supports FHD+(2160 * 1080) dual display interface, which has the following three configurations: eDP dual screen, 1-channel LVDS screen,+1-channel eDP dual screen MIPI screen * The above three configurations are realized by modifying hardware Camera interface: 2-way MIPI CAM interface Graphic parameters: SDM450: Adreno 506; up to a 600 MHz 3D graphics accelerator MSM8953:Adreno 506; up to 650 MHz 3D graphics accelerator For details, please contact customer service to download: G1921 industrial control motherboard hardware user manual_ V1.03>>> |
other | System support: Android 10 and other systems Our service: 8953 core board module+hardware customization+software development+OEM/ODM |
Scope of | Handheld terminal equipment, intelligent security equipment, mobile law enforcement terminal, mobile bill printing Industrial tablet computer, tachograph, mobile data acquisition terminal |
|
