| CPU | RK3568 ARM Cortex-A55 |
|---|---|
| Frequency | 2.0GHz*4 |
| RAM | 2GB/4GB/8GB LPDDR4/LPDDR4X |
| EMMC | 8GB/16GB/32GB/64GB/128GB eMMC optional |

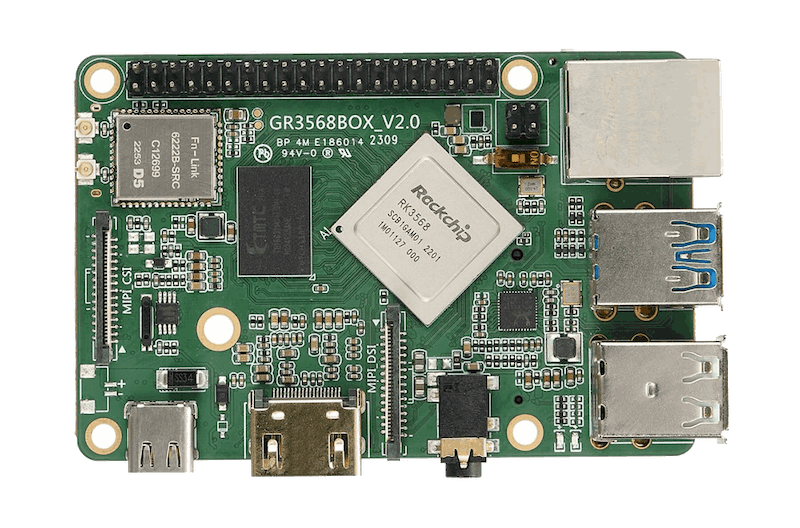

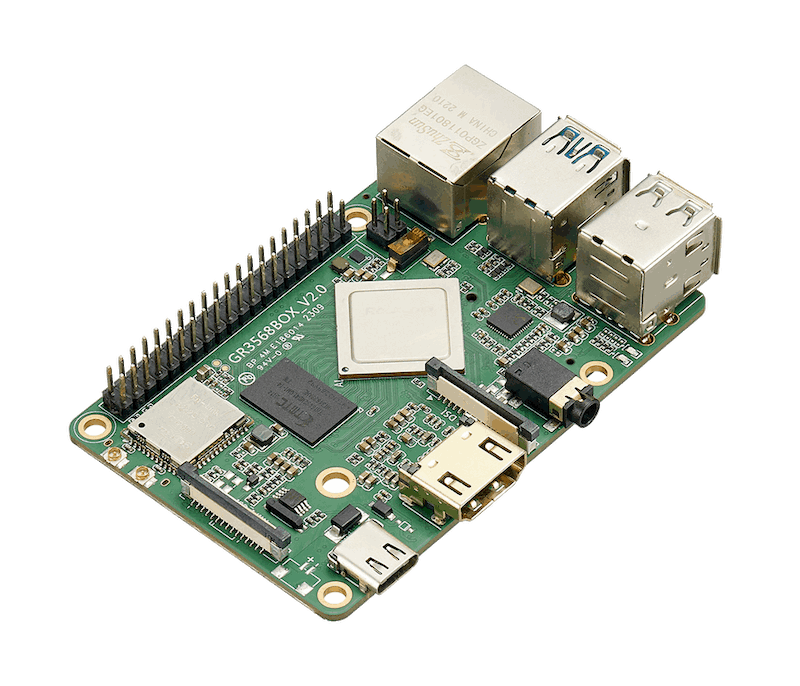

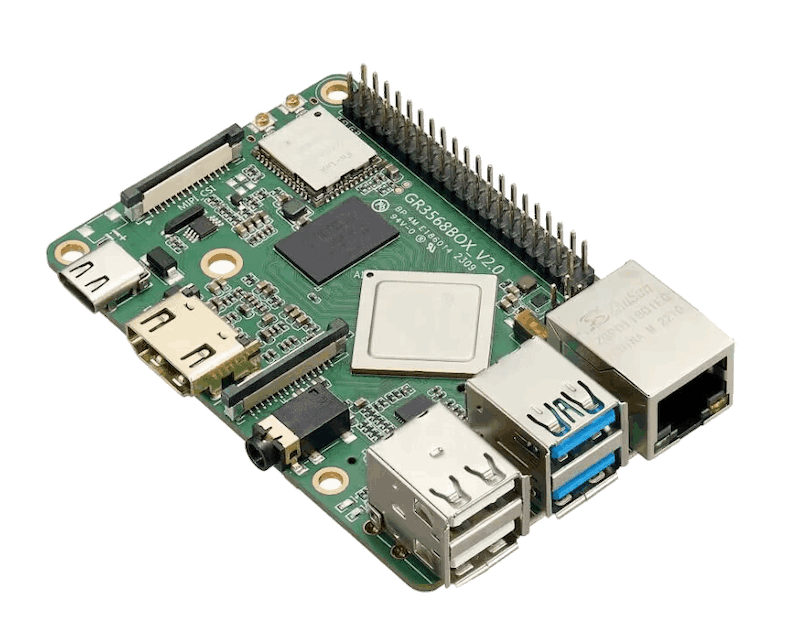

Empower your AIoT and edge computing projects with the EMBSOM RK3568 Single Board Computer. Featuring a quad-core Cortex-A55 CPU, Mali-G52 GPU, 1 TOPS NPU, and comprehensive I/O options, it's designed for high-performance industrial applications.
| Feature | Specification |
|---|---|
| CPU | Quad-Core Cortex-A55 @ up to 2.0 GHz |
| GPU | Mali-G52 |
| NPU | 1 TOPS |
| RAM | 2GB/4GB/8GB LPDDR4 |
| Storage | 8GB to 128GB eMMC |
| Ethernet | Dual Gigabit Ethernet (RJ45) |
| USB Ports | 2 x USB 2.0, 2 x USB 3.0 |
| Display | HDMI 2.0 (4K@60Hz), MIPI DSI |
| Audio | 3.5mm Stereo Output, HDMI Audio |
| Camera | MIPI-CSI up to 8MP |
| Storage Expansion | TF Card Slot (up to 128GB) |
| Power Input | Type-C, 5V-12V |
| Operating Temperature | -20°C to 80°C |
| Operating System | Android 11, Linux (Ubuntu/Debian), Buildroot |
AIoT Devices
Industrial Automation
Edge Computing Gateways
Smart Kiosks and Digital Signage
Security and Surveillance Systems
POS Terminals
Structural | Outlook: All-in-one board Size: 85mm*56mm Layer: 8-layer |
|---|---|
System | CPU: Rockhip RK3568 Frequency: Cortex A55 quad-core 2.0GHz RAM: 2GB/4GB/8GB Ipddr4/4x, 2GB as standard version EMMC: 8GB/16GB/32GB/64GB/128GB eMMC, 16GB as standard version Power IC: RK809 GPU: arm G52 GPU, support OpenGL ES1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1, inbult 2D hardware acceleration,and 4K 60fps H.265/H.264/VP9 video decode and 1080P 100fps H.265/H.264 video encode, also 8M ISP, HDR, NPU 1T |

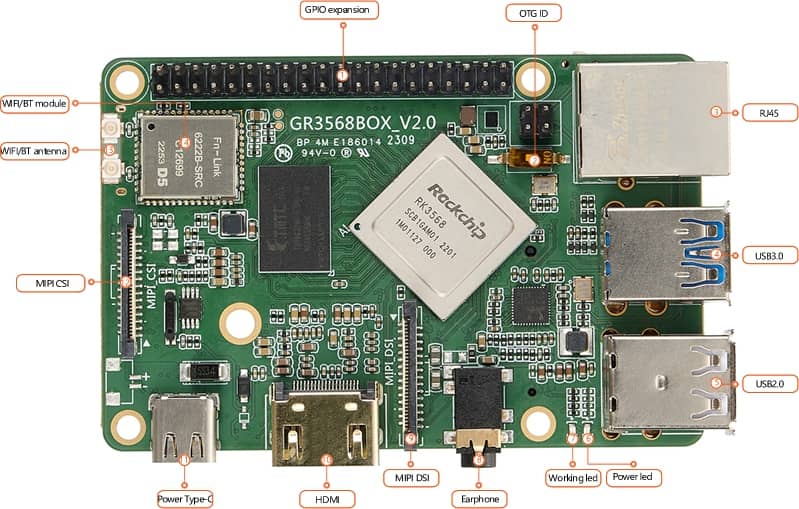

| Interface Parameters |

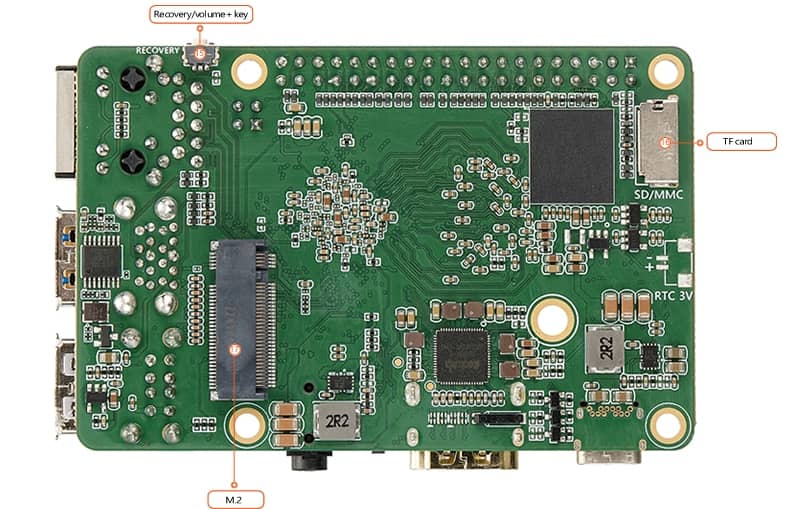

Power: Type-C, 5V-12V Ethernet: GMAC Ethernet control machine, 1000Mbps Ethernet (RJ45) Wifi: 2.4GHz/5GHz dual Wifi, 802.11a/b/g/n/ac. It could be extend Wifi+ blue two-in-one module by SDIO interface. And Bluetooth 5.0 Display:1 x HDMI 2.0, max 4K@60Hz 1 x MIPI DSI, such as 1920x1080@60fps Audio: 1 x phone output ( no MIC recode ), dual channels output, 1 x HDMI audio output Camera: 1 x MIPI-CSI ( Single channel 4 LAN, or dual channels 2 LAN ), max 8mp camera USB: USB2.0 X 2, USB3.0 x 2 TF Card: 1 x TF card slot, max 128GB TF card Others: 3 x UART1 x Debug uart2 x ADC2 x I2C2 x SPI12 x PWM1 x RTC, 2 PIN reserved for power interfaceP 100fps H.265/H.264 video encode, also 8M ISP, HDR, NPU 1T |
Electrical | Working temperature: -20℃- 80℃ Stroge temperature: -30℃- 80℃ Stroge humidity: 10%～80 % |
Other | OS: Android 11.0, Linux Qt, Ubuntu and Debian OS Customs service: RK3568 system on module and its carrier board customize and software develop and OEM/ODM |
Application | Applicable industries: handheld equipment, electricity, communication, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc. Typical applications: POS machines, express handhelds, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conferencing systems, etc. |
Our RK3568 Single Board Computer comes with full software support for a wide range of operating systems and development frameworks, making it an ideal choice for industrial applications, AI edge devices, and embedded solutions.
Android 11 / Android 12 (with BSP support)
Debian / Ubuntu(mainline and Rockchip kernel)
Buildroot (lightweight Linux for custom applications)
Full BSP (Board Support Package) for Android and Linux
Device tree customization support
Documentation for GPIO, UART, I2C, SPI, PWM, etc.
Prebuilt images and source code available upon request
Support for Rockchip RKNPU toolkit (RKNN)
OpenCV, TensorFlow Lite, ONNX Runtime
4K video decoding and multi-format codec support
Whether you are building an industrial HMI, smart kiosk, or AI edge gateway, our RK3568 SBC offers the software flexibility and documentation needed for fast deployment and stable performance.
|
