| CPU | RV1126B ARM Cortex-A53 |
|---|---|
| Frequency | 1.6GHz*4 |
| RAM | 1GB/2GB/4GB DDR3 optional |
| EMMC | 8GB/16GB/32GB eMMC optional |
The Rockchip RV1126B Development Board is an AI vision platform designed for intelligent imaging, machine vision, and edge AI applications. Based on the Rockchip RV1126B processor, it integrates a quad-core Cortex-A53 CPU, 3 TOPS NPU, AI-ISP, and advanced video processing capabilities into a compact development platform.
Designed for smart cameras, video analytics, industrial inspection, and AIoT devices, the board supports real-time AI inference, multi-camera input, and 4K H.264/H.265 video encoding while maintaining low power consumption.
Structural | Appearance: Stamp hole SOM + carrier board Size: 120mm x 90mm Layer: SOM 8-layer/carrier board 4-layer |
|---|---|
System | CPU: RockChip RV1126B Frequency: Quad core 64 bit 4*Cortex-A53 processor, up to 1.6GHz GPU: 2D Graphics Engine NPU: 3 TOPS. Support INT4, INT8, INT16, FP16 operation. ISP: Built-in 12M ISP and 8M AI-ISP Video CODEC: Video Decoder: support 4K@30fps H.264/H.265 decoding Video Encoder: support 4K@45fps H.264/H.265 encoding RAM: Support 1GB/2GB DDR3, Customizable 4GB LPDDR4/LPDDR4X Storage: Support 8GB/16GB/32GB/64GB/128GB/256GB EMMC Support USB, SDIO, CAN, PWM, I2C, I3C, UART, SARADC expansion interfaces Support BuildRoot and Debian 12 OS |
| Interface Parameters |

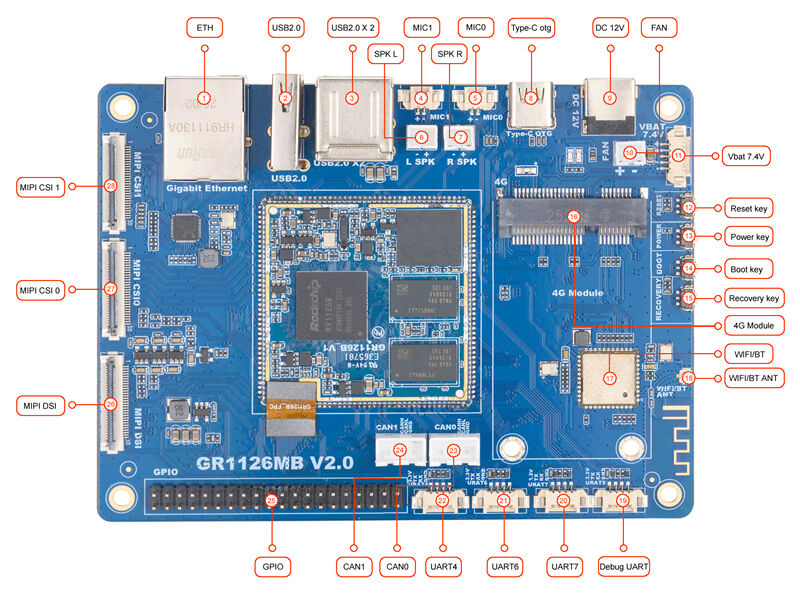

【1】 RJ45 Gigabit Ethernet port 【2】 USB2.0 HOST 【3】 USB2.0 HOST 【4】 MIC audio input 【5】 MIC audio input 【6】 Speaker/L 【7】 Speaker/R 【8】 Type-C OTG 【9】 DC 12V power input 【10】 Fan power connector 【11】 7.4V battery connector 【12】 Reset button 【13】 Power button 【14】 Force upgrade button 【15】 Upgrade button 【16】 4G module interface 【17】 WIFI/BT module 【18】 WIFI/BT antenna 【19】 Debug serial port 【20】 Uart7 【21】 Uart6 【22】 Uart4 【23】 CAN0 【24】 CAN1 【25】 GPIO expansion interface 【26】 MIPI LCD display connector 【27】 MIPI camera input connector 【28】 MIPI camera input connector 【29】 TF card slot 【30】 RTC Battery Holder 【31】 Uart5 【32】 SPI 1 【33】 SIM Card Slot |
Electrical | Operating Temperature：-20℃- 80℃ Storage Temperature：-30℃- 80℃ Storage humidity: 10%～80 % |
Other | OS: BuildRoot, Debian 12 Custom service: RV1126B system on module, custom hardware + software + OEM/ODM |
Application | Suitable for commercial display kiosks with high-definition screens, vending machines, educational terminals, automatic identification systems, robots, security surveillance systems, financial POS terminals, in-vehicle control terminals, and more. It lowers the R&D barrier and accelerates the product development cycle. |
The RV1126B Development Board supports:
Buildroot
Debian
Additional BSP customization services are available upon request.
The onboard NPU can be used for deploying AI models such as:
Object Detection
Face Recognition
License Plate Recognition
Human Detection
Industrial Defect Inspection
Edge AI Analytics
Supported model formats:
INT4
INT8
INT16
FP16
Available resources include:
SDK
BSP Source Code
Linux Kernel Source
User Manual
Hardware Design Guide
|
Product name |
Type |
Size（KB） |
Download the latest version |
|
