| CPU | RK3399 ARM Cortex-A72+Cortex-A53 |
|---|---|
| Frequency | 2.0GHz*2+1.4GHz*4 |
| RAM | 2GB DDR3/4GB DDR3 optional |
| EMMC | 4GB/8GB/16GB/32GB emmc optional, standard 8GB |

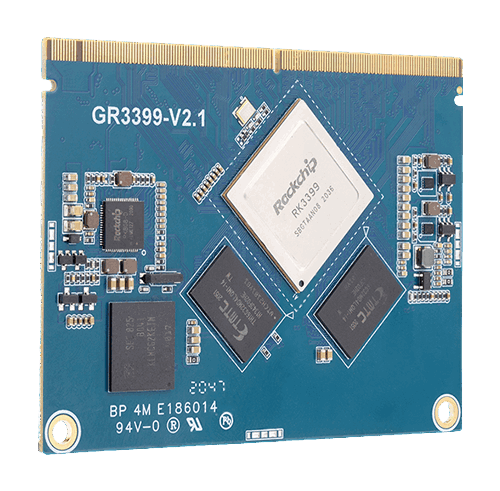

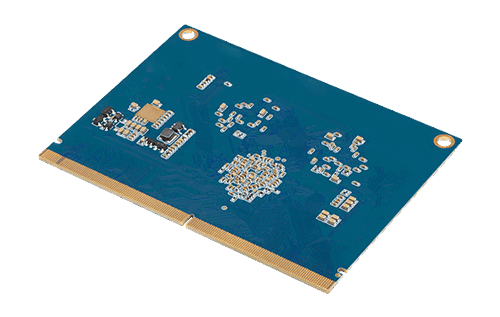

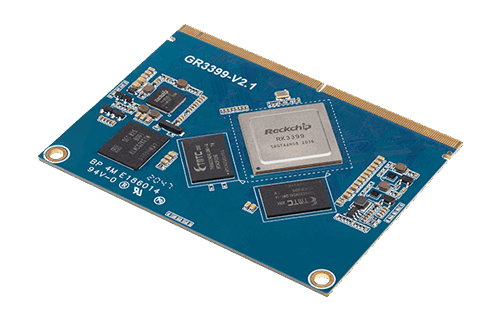

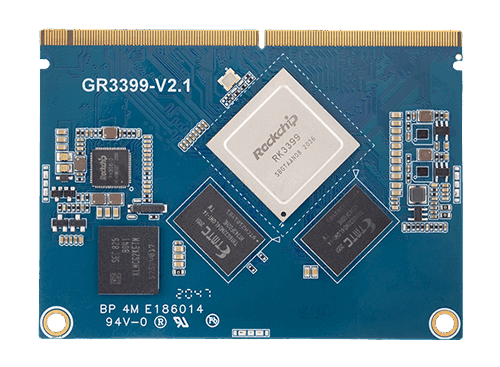

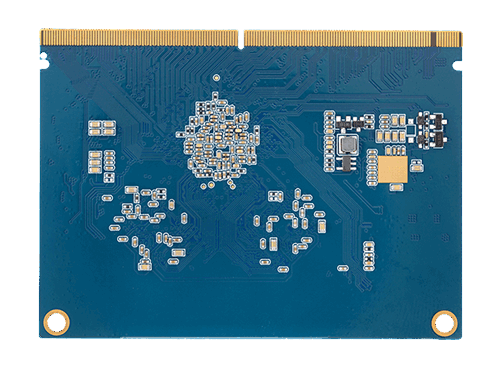

The RK3399 Gold Finger System on Module is a high-performance embedded solution designed for AI edge computing, multimedia applications, and industrial control. Featuring the Rockchip RK3399 processor with dual-core Cortex-A72 and quad-core Cortex-A53, this SoM delivers outstanding processing power and flexibility in a compact gold finger form factor.
Powerful Hexa-core processor: Dual Cortex-A72 + Quad Cortex-A53
Mali-T860MP4 GPU for advanced graphics processing
Supports up to 4GB LPDDR4 RAM and 64GB eMMC
Gold finger interface for easy integration and high-speed signal transmission
4K video decoding/encoding, H.265/H.264 supported
Multiple display interfaces: HDMI, MIPI-DSI, eDP
USB 3.0, PCIe, MIPI CSI, GPIO, I2C, SPI, UART
Thanks to its powerful processing capability and flexible I/O, the RK3399 SoM is widely used in:
AI vision systems and deep learning edge devices
Industrial automation and PLC controllers
Digital signage and interactive advertising
Smart retail and self-service kiosks
Medical devices and handheld terminals
Networked multimedia applications
| CPU | Rockchip RK3399 (Dual-core Cortex-A72 + Quad-core Cortex-A53) |
|---|---|
| GPU | Mali-T860MP4 |
| Memory | Up to 4GB LPDDR4 |
| Storage | Up to 64GB eMMC |
| Display | HDMI 2.0, MIPI-DSI, eDP |
| Camera | MIPI-CSI, up to 13MP |
| Interfaces | USB 3.0, PCIe, GPIO, I2C, SPI, UART |
| OS Support | Android, Linux (Ubuntu/Debian), Buildroot |
| Form Factor | Gold Finger (customized pinout) |
Long-term availability and industrial-grade reliability
Stable hardware design with full documentation
Customizable BSP and software support
Rapid integration with your existing hardware through gold finger interface
Fast delivery and responsive technical support
All hardware and software resources are available for free download, including:
Datasheets and detailed product manual
Schematic and PCB layout (PDF)
Linux and Android images
Bootloader and kernel source code
We offer fast and flexible customization services to meet your specific requirements, including hardware modification, software development, and full product design.
Contact us today to discuss your project and request a quotation.
Structural | 1. Appearance: Gold finger 2. Size: 82mm * 60mm * 3mm [industry minimum] 3. Pin pitch: 1.1mm 4. Pin pad size: 1.3mm * 0.7mm 5. Number of pins: 313 PIN, which can meet various expansion needs of users [the largest number of lead pins] 6. Process: 8-layer gilding process design, PCB made by Taiwan funded large factory [exclusive support] |
|---|---|
System | CPU: RK3399, Cortex A53 quad core 1.4GHz+A72 dual core 2GHz, considered as the most promising ARM processor in recent years Memory: Single channel DDR3 design, 2GB standard configuration, 4GB customizable [2GB standard configuration, 4GB customizable] Storage: 4GB/8GB/16GB/32GB emmc optional, 8GB standard configuration [8GB standard configuration, 4GB/16GB customizable] Power IC: RK808, supporting dynamic frequency modulation; 〔 Exclusive Support] Graphics processor: Mali-T860 MP4, quad core GPU, support for OpenGL ES 1.1/2.0/3.0/3.1, Openvg1.1, OpenCL, Directx11, support for 4K VP9 and 4K 10bits H265/H 264 video decoding, up to 60 fps, 1080P multi format video decoding, 1080P video decoding, supporting H 264, VP8 format [exclusive support Ethernet: RTL8211E Gigabit Ethernet PHY; [ Exclusive Support]ry [exclusive support] |
| Interface Parameters | Display interface: support MIPI interface, eDP output [exclusive support] Touch interface: capacitive touch, can use USB or serial port to expand resistance touch Audio interface: AC97/IIS/PCM interface, supporting audio recording and playback SD card interface: two SDIO output channels Emmc interface: onboard emmc interface, pins are not led out separately Ethernet interface: support gigabit Ethernet USB HOST interface: 2-way HOST2.0, 1-way HOST3. O, [support] USB TYPEC interface: 1 channel UART interface: 5-channel serial port, supporting flow control serial port PWM interface: 2-channel PWM output IIC interface: 6-channel IIC output SPI interface: 1 channel SPI output ADC interface: 5-channel ADC output Camera interface: 1-channel BT656/BT601, 2-channel MIPI output [exclusive support] HDMI interface: HDMI2.0, high-definition audio and video output, audio and video synchronous output [Exclusive support] MIPI interface: 1-way MIPI RX, 1-way MIPI TX, 1-way MIPI RX/TX EDP interface: support |
Electrical | Input voltage: 3.3V/5A Output voltage: 1.8V Storage temperature: - 20~80 ℃ [Exclusive support] Operating temperature: - 20~70 ℃ |
Other | System support: android7.1, linux, debian and other systems Our service: 3399 Golden Finger core board module+hardware customization+software development+OEM/ODM |
Application | Applicable industries: handheld equipment, electricity, communication, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc. Typical applications: POS machines, express handhelds, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conferencing systems, etc. |
We provide complete software support for Android and Linux systems including:
Board Support Package (BSP) for Android 7.1 and Linux (Ubuntu, Debian, Buildroot)
SDK and source code access for rapid development
Driver support for all peripherals and interfaces
OTA update and customization services
|
