| CPU | S5P4418 ARM Cortex-A9 |
|---|---|
| Frequency | 1.4GHz*4 |
| RAM | 1GB DDR3/2GB DDR3 optional |
| EMMC | 4GB/8GB/16GB eMMC optional |

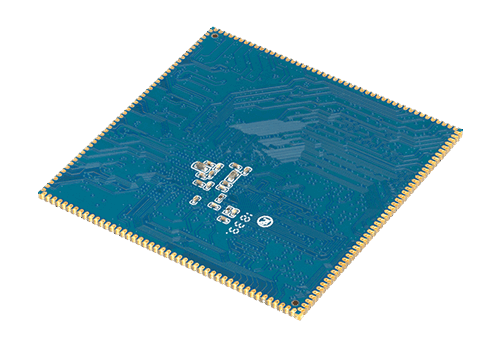

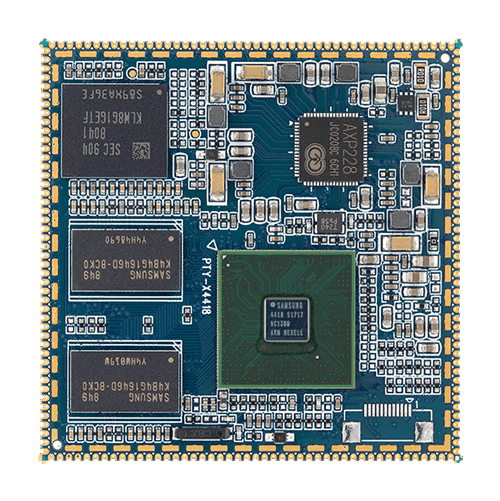

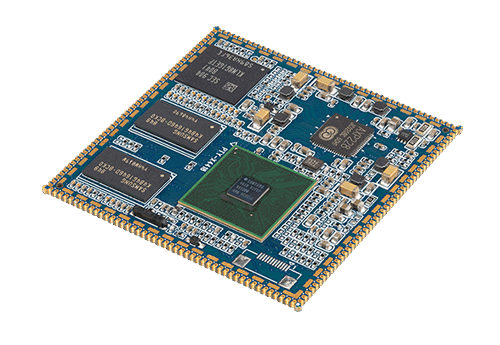

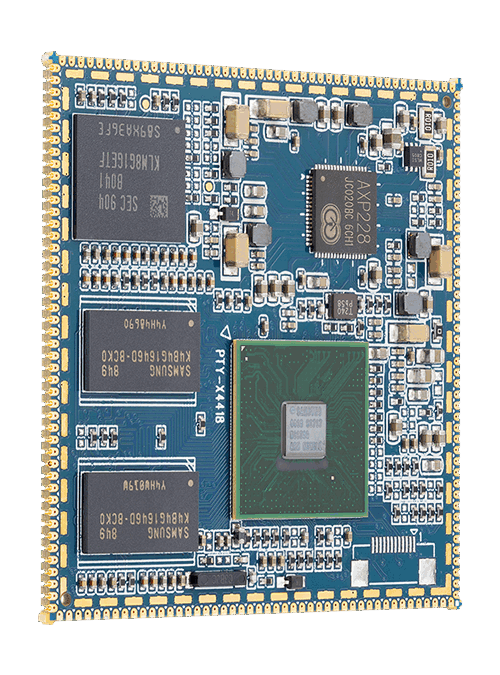

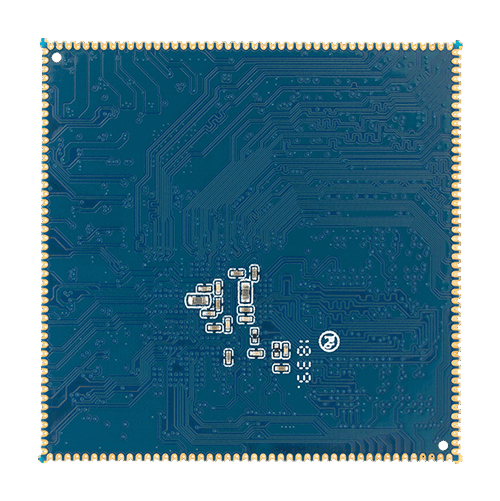

S5P4418 system on module ( for short S5P4418 SOM ) is a product platform based on Samsung S5P4418 (A9 quad-core) chip that designed by Graperain. The S5P4418 SOM takes stamp hole system on module. It is so strong expandability, supports 184PIN, running 1.4GHz. PCB designed 8 layers in immersion gold, and is of best electrical specification and anti-interference characteristic, and work stable. It has PMU onboard, and with coulombmeter charging, integrating the gigabit Ethernet firstly. The system on module can be used in MID, POS, PDA, PND, smart home, phone, learning machine, game machine and other kinds of industrial control filed.
S5P4418 SOM takes 28nm craftsmanship, built-in high performance A9 ARM Quad core architecture, compare with Exynos4412, S5P4418 supports mostly format video decoding, and onboard LVDS and RGB double channels display control interface. Its resolution ratio is 2048*1280. Meanwhile it integrates the Gigabit Ethernet controller onboard.
Structural | 1. Appearance: Stamp hole 2. System on module dimensions: 52mm*52mm*3mm 3. Pin pitch: 1.1mm 4. Pin pad size: 1.3mm*0.7mm 5. Pin quantity: 184 PIN 6. Process: 8-layer gilding process design |
|---|---|
System | CPU: S5P4418, quad core Cortex-A9, 1.4GHz Memory: Single channel DDR3 design, 1GB standard configuration, 2GB customizable Storage: 4GB/8GB/16GB/32GB eMMC optional, 8GB standard configuration Power IC: use AXP228, support dynamic frequency modulation, coulometer, etc. Ethernet: RTL8211E Gigabit Ethernet PHY |
| Interface Parameters | LCD interface: support TFT, LVDS, MIPI interfaces Touch interface: capacitive touch, resistive touch Audio interface: AC97/IIS interface, supporting audio recording and playback SD card interface: two SDIO output channels eMMC interface: onboard eMMC interface, pins are not led out separately Ethernet interface: support gigabit Ethernet USB HOST interface: one channel HOST2.0, one channel HSIC USB OTG interface: one OTG2.0 UART interface: 4 serial ports, 3 outgoing ports, and flow control serial ports PWM interface: 4-channel PWM output IIC interface: 2 channel IIC output SPI interface: 1 channel SPI output ADC interface: 2 channel ADC Camera interface: 1 channel BT656/BT601, 1 channel MIPI CSI VGA interface: expand with LCD output interface Boot config.: No, the system on module boot automatically |
Electrical | Input voltage: 3.7~5.5V (5V input is recommended) Output voltage: 3.3V/4.2V (power supply for carrier board and charging battery) Storage temperature: -40~80 ℃ Operating temperature: -30~70 ℃ |
Other | System support: Android, Linux, Ubuntu and other systems |
|
Product name |
Type |
Size（KB） |
Download the latest version |
|
Samsung S5P4418 System on Module |
File does not exist! |
File does not exist! |
S5P4418 system on module ( for short S5P4418 SOM ) is a product platform based on Samsung S5P4418 (A9 quad-core) chip that designed by Graperain.
S5P4418 System on Module
The S5P4418 single board computer is almost one third of the S5P4418 development board size, but with better performance than the S5P4418 development board
S5P4418 Single Board Computer

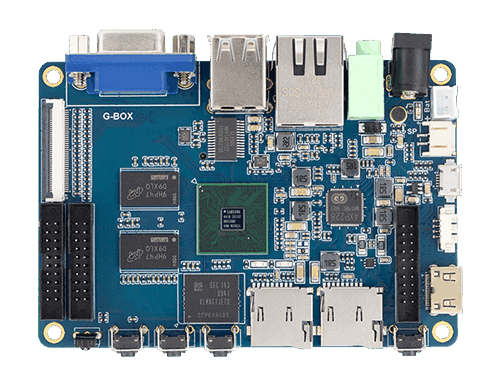

S5P4418 development board contains of system on module, carrier board and LCD board. The system on module takes 8-layer process design
