| CPU | A733 ARM 2*A76 +6*A55 |
|---|---|
| Frequency | 2.0GHz*8 |
| RAM | 2GB/4GB LPDDR5 optional |
| EMMC | 8GB/16GB/32GB/64GB/128GB/256GB eMMC optional |
A733 development board is a product platform launched by Shenzhen Graperain Technology Co., Ltd. based on the Rockchip A733 (64-bit octa-core 2*A76+6*A55) chip.
A733 development board is mainly composed of A733 gold finger system on module and its carrier board
A733 development board take Allwinner A733 octa-core CPU, bulit-in 3TOP NPU and support localized AI processing. It support 16GB RAM, M.2 onboard, WIFI6 and Bluetooth 5.4, gigabit Ethernet, and 4K HDMI display, and rich expansion interfaces. It could be applied in industrial control, edge computing and face recognition.
Structural | Appearance: Gold finger system on module + carrier board Size: 130mm x 90mm Layer: SOM 8-layer/carrier board 4-layer |
|---|---|
System | CPU: Allwinner A733 ARM processor Frequency: Octa-core 64bit 2*Cortex-A76+6*Cortex-A55 CPU, 12nm manufacturing process, main frequency max up to 2.0GHz GPU: BXM-4-64 MC1 GPU, support OpenGL ES 3.2, Vulkan 1.3, OpenCL 3.0 NPU: 3Tops NPU ISP: Max up to 24M@25fps CODEC: Video Decoder: 8K@24fps (H.265 MP, VP9, AVS2), 4K@30fps (H.264 BL/MP/HP) Video Encoder: 4K@30fps(H.265,H.264), 4K@15fps MJPG Picture CODEC: JPEG encoder up to 4K@15fps ; JPEG decoder up to 1080P@60fps RAM: 2GB/4GB/8GB/16GB LPDDR5 (2GB as standard, and 4GB/8GB/16GB as optional) Storage: 8GB/16GB/32GB/64GB/128GB/256GB eMMC, UFS3.0 Support UART, TWI, ADC, PWM, GPIO, USB2.0, USB3.0, HDMI, SPI, SDIO3.0 etc. Support Android 15, Buildroot, Debian 11 OS |
| Interface Parameters |

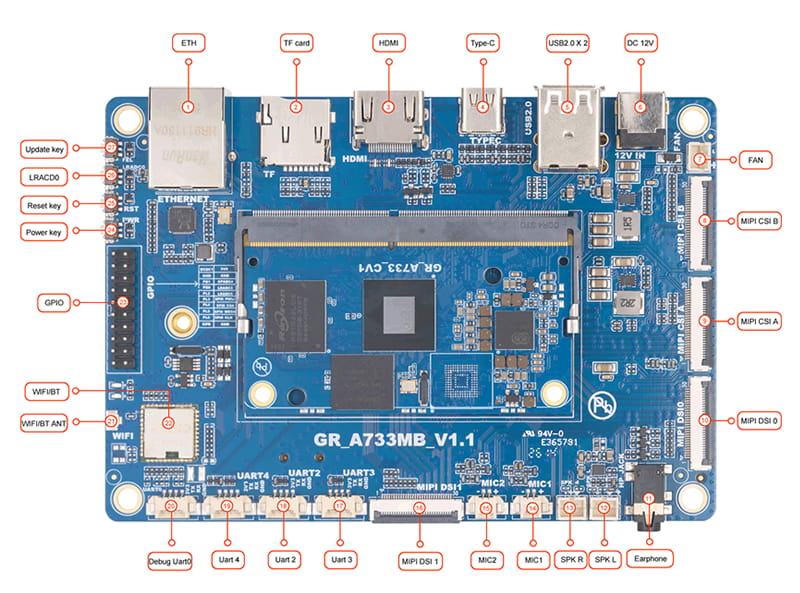

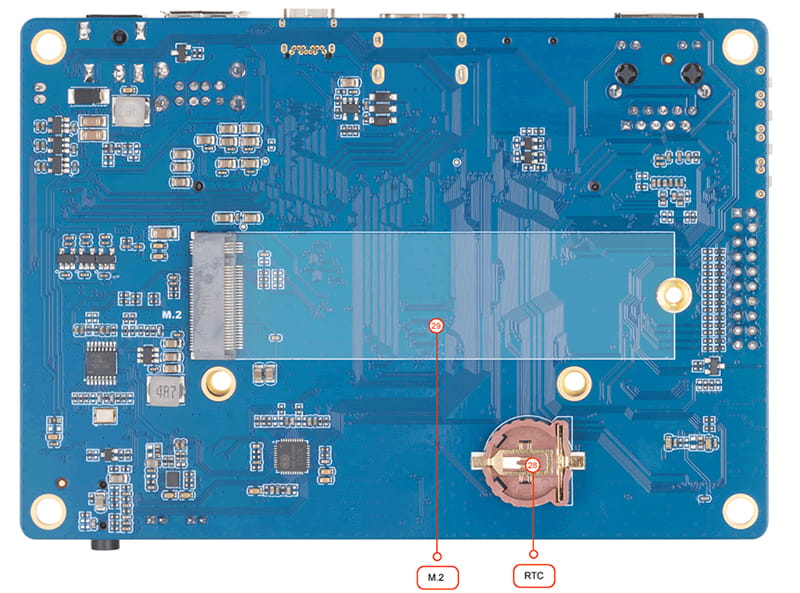

【1】 RJ45 gigabit Ethernet 【2】 TF card 【3】 HDMI 2.0 【4】 Type-C to DP1.4 【5】 USB2.0 host 【6】 DC 12V 【7】 FAN 5v 【8】 MIPI Camera interface 【9】 MIPI Camera interface 【10】 MIPI LCD display interface 【11】 Earphone 【12】 Speaker left channel 【13】 Speaker right channel 【14】 MIC audio input 【15】 MIC audio input 【16】 MIPI LCD display interface 【17】 UART3 【18】 UART2 【19】 UART4 【20】 Debug serial port 【21】 Wifi/BT antenna slot 【22】 Wifi/BT module 【23】 GPIO expansion interface 【24】 Power key 【25】 Reset key 【26】 Custom key 【27】 Upgrade key 【28】 RTC battery slot 【29】 M.2 SSD interface |
Electrical | Operating Temperature：-25℃- 75℃ Storage Temperature：-30℃- 80℃ Storage humidity: 10%～80 % |
Other | OS: Android 15, Buildroot, Debian 11 OS Service: A733 system on module + hardware custom + software develop + OEM/ODM |
Application | It is applicable to commercial display advertising machines with high-definition display, vending machines, teaching terminals, automatic recognition, robots, security monitoring, financial POS, vehicle control terminals, etc., lowering the R&D threshold and accelerating the product R&D cycle. |
|
