CPU	RK3566 ARM Cortex-A55
Frequency	1.8GHz*4
RAM	2GB DDR3/4GB DDR3 optional
EMMC	8GB/16GB/32GB eMMC optional

Rockchip RK3566 Single Board Computer for Rapid Deployment

Key Features of RK3566 SBC

High-Performance Cortex-A55 CPU & Mali-G52 GPU

The RK3566 SBC provides quad-core Cortex-A55 processing power with Mali-G52 GPU, delivering high performance for embedded computing and AIoT applications.

Rich Onboard I/O Interfaces

Includes PCIe, USB 3.0, MIPI-DSI/CSI, UART, SPI, I2C, GPIO, and Gigabit Ethernet, allowing immediate connection to sensors, displays, and network devices without additional baseboards.

Industrial-Grade Stability

Engineered for industrial environments, the SBC operates reliably across wide temperature ranges, ensuring stable deployment in AIoT gateways, industrial controllers, and edge computing systems.

Applications of RK3566 SBC

AIoT Gateways & Edge Devices

Supports edge AI processing and IoT connectivity for smart applications.

Industrial Automation

Suitable for factory automation, monitoring, and process control with robust hardware.

Rapid Prototyping

Ready-to-use board simplifies embedded prototyping and testing for engineers and developers.

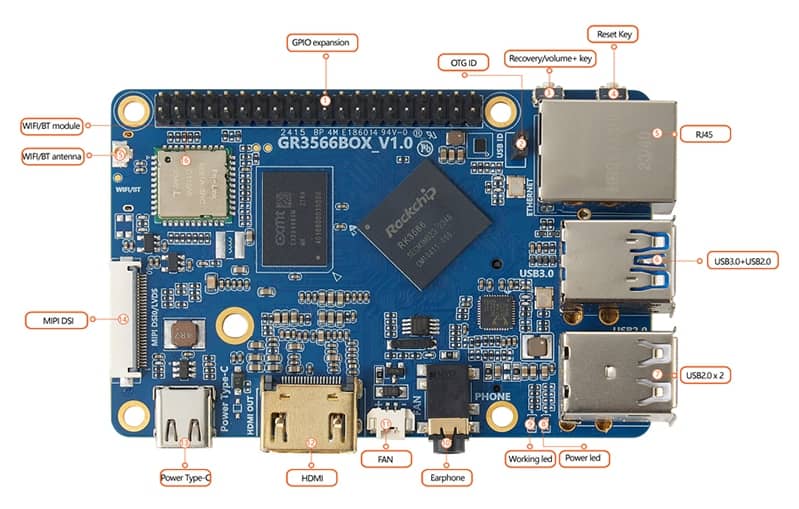

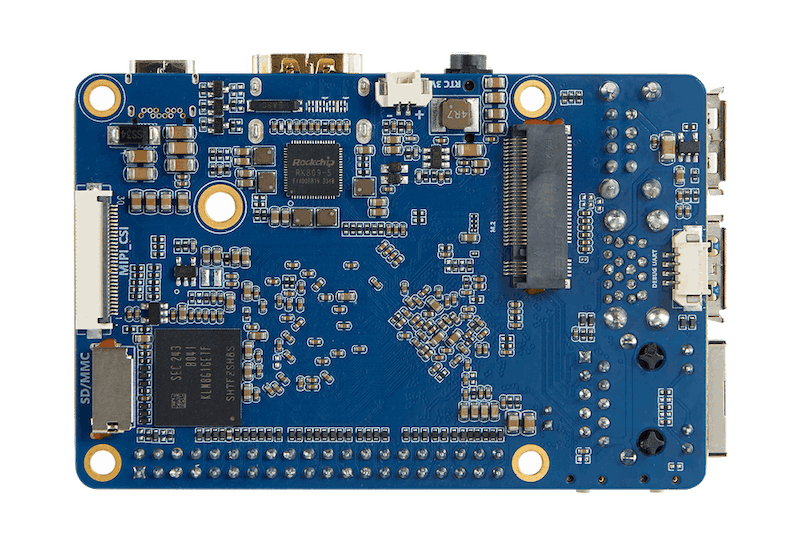

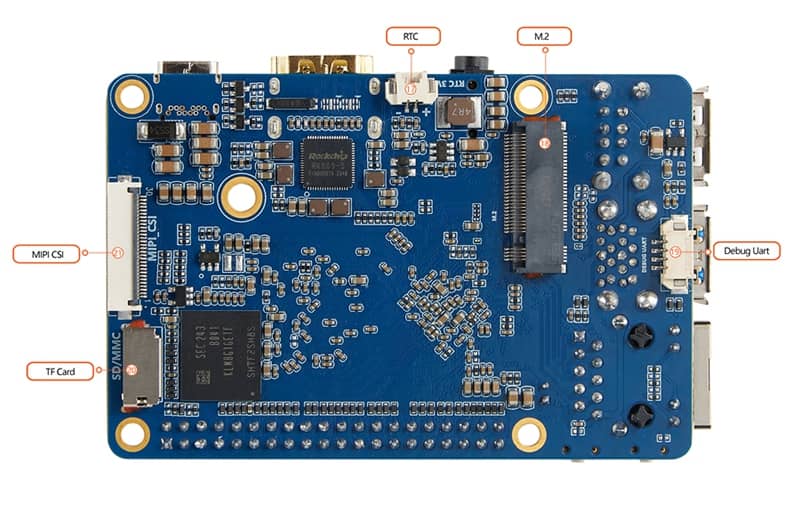

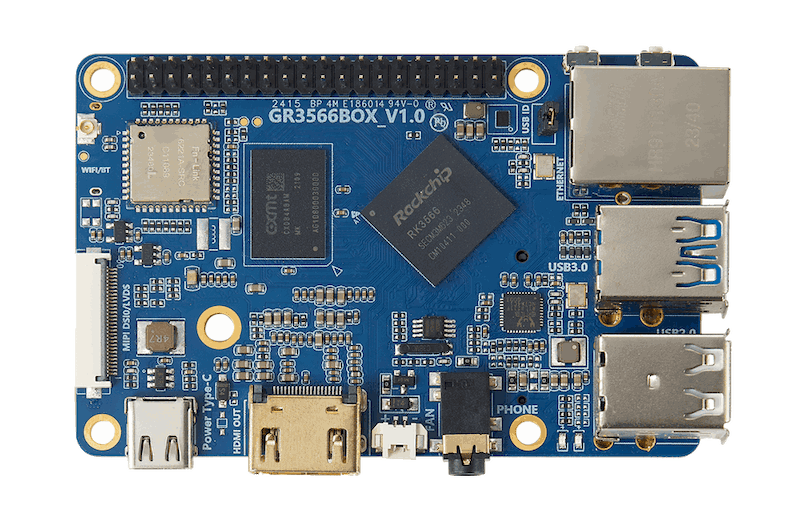

RK3566 single board computer top view RK3566 single board computer bottom view

Frequently Asked Questions about RK3566 SBC

1. Can the RK3566 SBC be used directly in industrial applications?

Yes, the SBC is industrial-grade and suitable for deployment in factory automation, AIoT gateways, and edge computing systems.

2. Does the SBC support rapid prototyping?

Yes, its ready-to-use interfaces allow quick integration with sensors, displays, and peripheral devices.

3. What operating systems are supported?

Linux, Debian, Ubuntu, and Android with full BSP and SDK support for development.

Structural parameters	Outlook: All-in-one board Size: 85mm*56mm Layer: 8-layer
System Configuration	CPU: Rockhip RK3566 Frequency: Cortex A55 quad-core 1.8GHz RAM: 2GB/4GB/8GB LPDDR4/LPDDR4X EMMC: 8GB/16GB/32GB/64GB/128GB EMMC memory CODEC: 4K 60fps H.265/H.264/VP9 video decoder 1080P 100fps H.265，60fps H.264 video encoder GPU: ARM G52 2EE GPU, and support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1,integrate high-performance 2D hardware engine
Interface Parameters	Power Supply: Type-C, DC 5V/3A Ethernet: Built-in GMAC Ethernet controller, support 1000Mbps（RJ45） Wifi: Expandable SDIO WiFi+bluetooth two-in-one module：- support 2.4GHz / 5GHz dual frequency WiFi,802.11a/b/g/n/ac - support Bluetooth4.2 Display:1 x HDMI2.0, max 4K@60Hz 1 x MIPI DSI, max 1920x1080@60fps Audio: 1 x Phone output ( MIC recording), support dual-channels audio output 1 x HDMI audio output Camera: 1 x MIPI-CSI （Single channel 4 LAN ),max 8mp camera USB: USB2.0x3、USB3.0x1 M.2: M.2 2242 solid state disk TF Card: 1 x TF card slot,max 128GB TF card Others: 4 x UART,1 x Debug,UART 1 x ADC,1 x I2C,1 x SPI,1 x I2S (2 channels),12 x PWM,1 x RTC，reserved 2 PIN for power supply,1 x FAN，reserved 2 PI for FAN power supply, and 5v voltage
Electrical Characteristics	Working temperature: -20℃- 80℃ Stroge temperature: -30℃- 80℃ Stroge humidity: 10%～80 %
Other	OS: Android 12.0, Linux Qt, Ubuntu and Debian OS Customs service: RK3566 system on module and its carrier board customize and software develop and OEM/ODM
Application	Applicable industries: handheld equipment, electricity, communication, medical, network, security, finance, consumer electronics, display control, teaching, advertising machines, etc. Typical applications: POS machines, express handhelds, advertising machines, learning machines, GPS navigation, man-machine interface, monitoring equipment, video conferencing systems, etc.

Product name	Type	Size（KB）	Download the latest version
Rockchip RK3566 Single Board Computer			Rockchip RK3566 Single Board Computer

QCan the RK3566 SBC be customized for specific applications?

A Yes, we offer customization for the RK3566 SBC including board layout adjustments, peripheral configuration, OS optimization, and enclosure design to meet specific project needs.

QWhat documentation and SDK resources are available for RK3566 SBC?

A RK3566 SBC is supported by full documentation including datasheets, user manuals, schematics, and SDK packages with source code for Android/Linux development.

QWhat is the power input requirement of RK3566 SBC?

A The RK3566 SBC typically operates on a 5V/3A DC input, offering flexibility for embedded power design in industrial and mobile applications.

QWhat storage options are supported on RK3566 SBC?

A The RK3566 SBC supports multiple storage options including eMMC, TF card and optional M.2 interface for SSD expansion.

QWhat I/O interfaces does the RK3566 SBC provide?

A The RK3566 SBC offers rich I/O interfaces such as USB 3.0, USB 2.0, Gigabit Ethernet, M.2, GPIO, I2C, SPI, UART for diverse embedded system integration needs.

QWhat display interfaces are available on RK3566 SBC?

A The RK3566 SBC features multiple display interfaces, including HDMI 2.0, MIPI-DSI, supporting up to 4K output for multimedia-rich applications.

QDoes the RK3566 SBC support AI acceleration?

A Yes, the RK3566 SBC integrates a built-in NPU (1 TOPS) capable of accelerating AI inference tasks such as object detection and facial recognition, ideal for edge AI deployments.

QWhat operating systems are supported by RK3566 SBC?

A The RK3566 SBC supports Android 12, Ubuntu/Debian Linux, and Buildroot. It comes with complete BSPs and driver support for rapid embedded system development.

QWhat is the RK3566 SBC used for?

A The RK3566 SBC is a versatile single board computer designed for industrial automation, smart retail systems, edge AI applications, and multimedia terminals. It combines reliable processing power with rich connectivity in a compact form.

QCan the RK3566 SOM be customized for specific project needs?

A Yes, we offer hardware customization based on the RK3566 SOM, including carrier board design, I/O adjustments, display tuning, and BSP modification to fit your exact application scenario.
